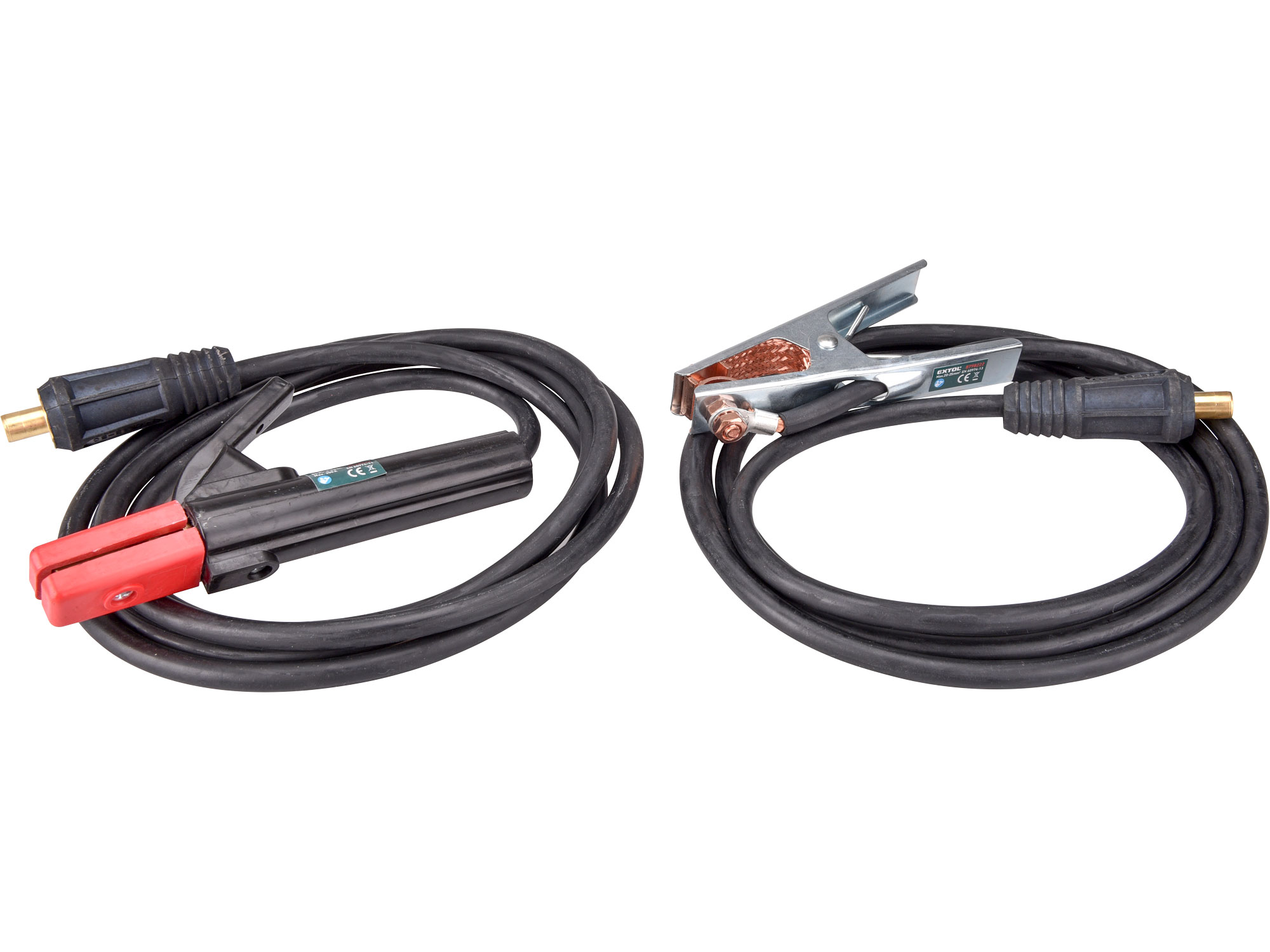

Welding Leads set 16mm2, 2pcs, 35-50

Welding Leads set 16mm2, 2pcs, 35-50

Welding Lead Set 25mm2, 2pcs, 35-50

Welding Lead Set 25mm2, 2pcs, 35-50

TIG Torch, 4m, 35-50

TIG Torch, 4m, 35-50

Extol Industrial

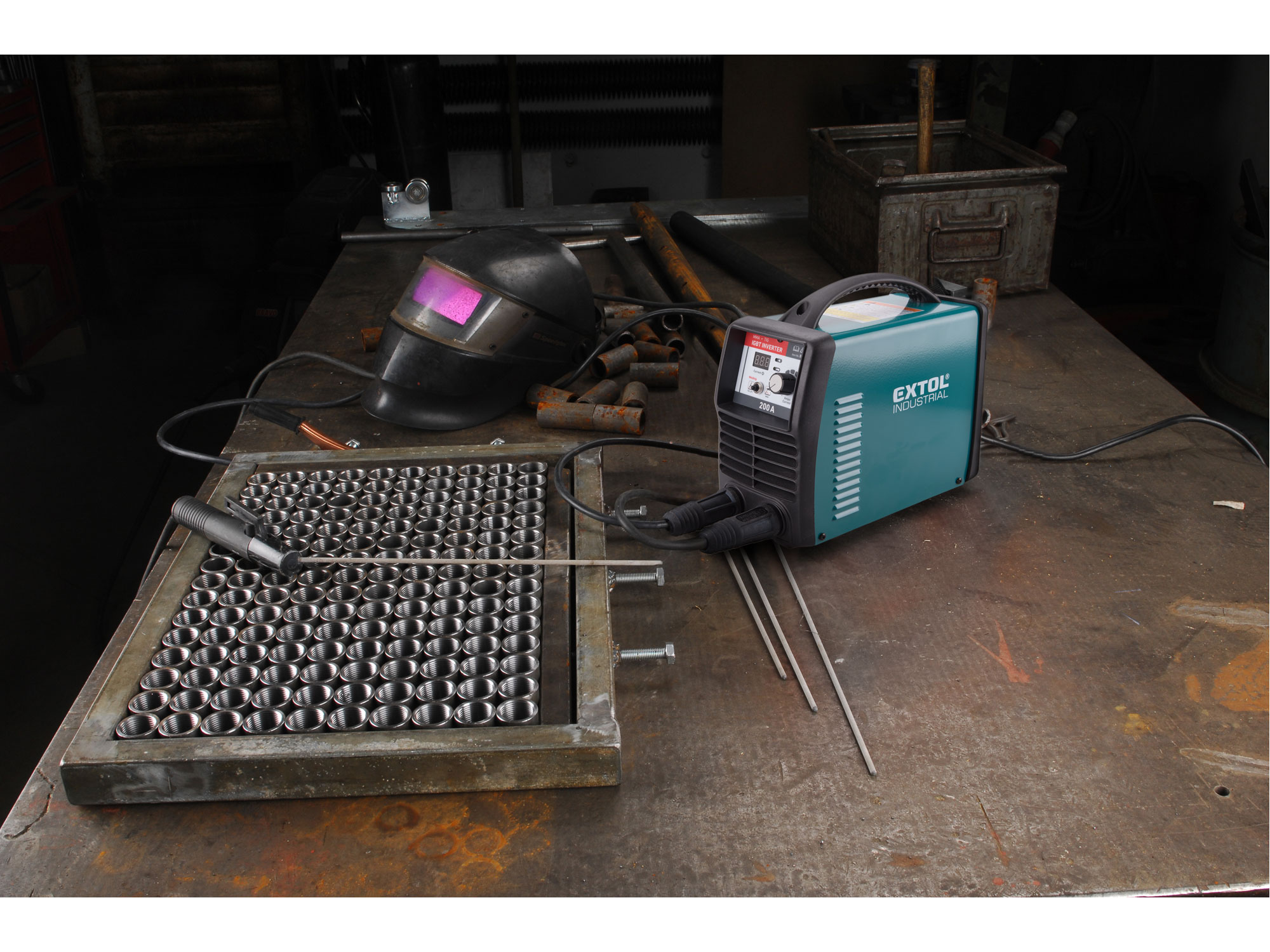

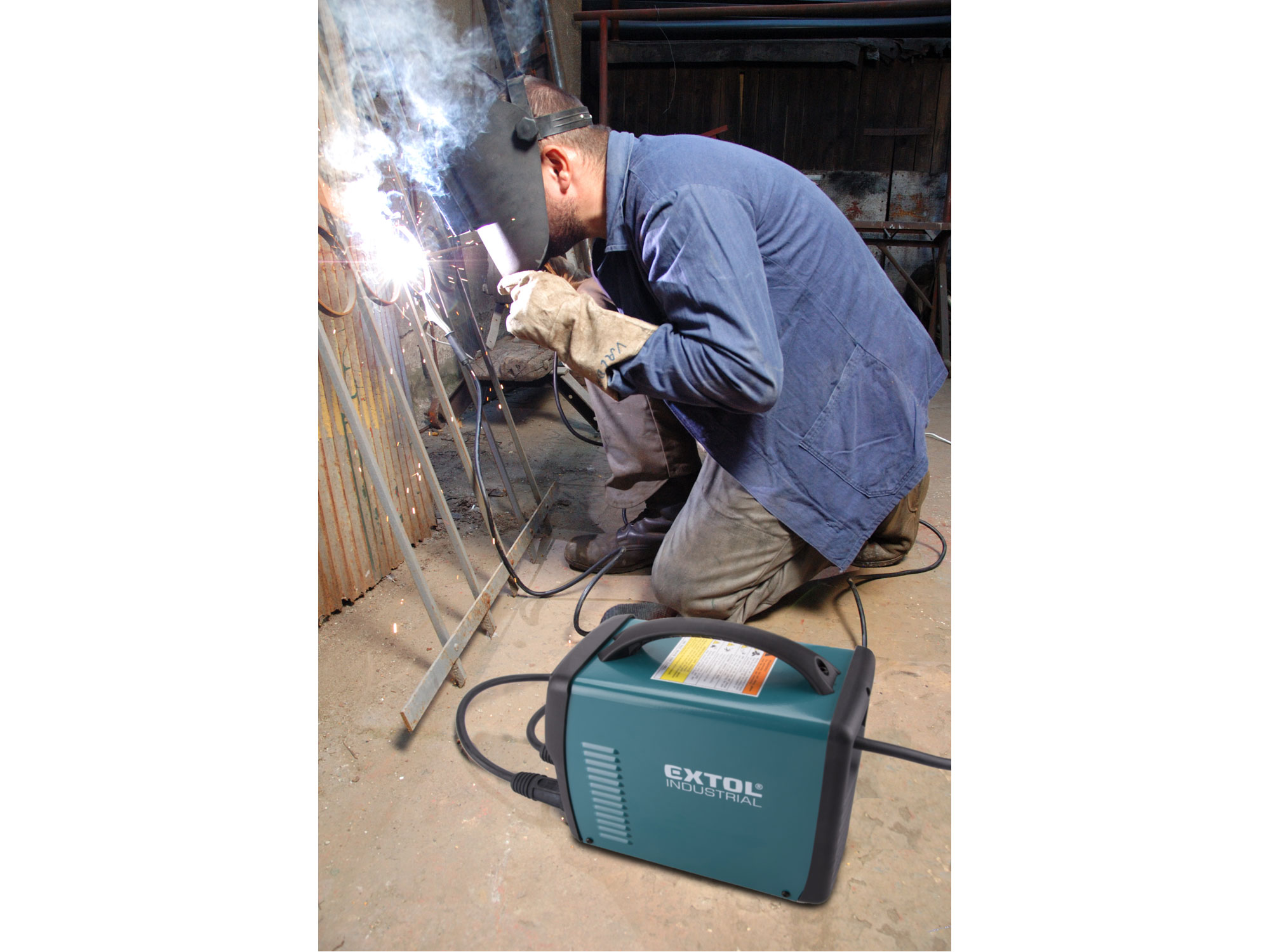

Welding Inverter 160A

Item No.

8796011

EAN

8595126976589

$ 588.20

incl. tax

Regular price

Currently not available

Currently not available

Currently not available

free shipping

or find in-store

Main Features

high working cycle (load) at temperatures up to 40 ° C ensures long-term continuous operation even at high ambient temperatures
a constant output welding current in addition to the above controls helps maintain a more stable welding arc
the fast dynamic response reduces shocks caused by fluctuations in arc length with respect to current
during welding, there is a lower spray of material from the weld pool and the creation of a quality weld
contains the function of automatic protection in case of undervoltage, overvoltage, overheating, etc. If the protection is activated, the warning light on the front panel will light up and the output current will be disconnected
for frequent and long-term use in polluted areas, the inverter is equipped with large quick connectors for welding cables with 35-50 termination
thanks to its small size and low weight, the inverter can be easily transported.

Description

Technical Specifications

voltage/frequency: 220-240V/50Hz

welding current: 10-160A

no-load voltage: 62V-MMA, 62V-TIG

max. effective power supply: 24A-MMA, 17A-TIG

protection at maximum current: 32A-MMA, 25A-TIG

load: při 40°C - 160A/40%, 135A/60%, 105A/100%

electrodes diameter: 1,6-4,0mm

weight: 4,5kg

Download

Download User's Manual

Download Documentation
